Alpha 70A

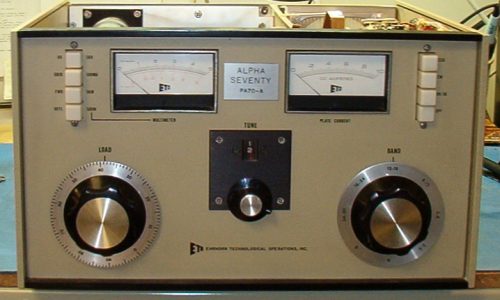

Alpha 70A - front
Serial Number ranges from 001 to 182
Shipping began in 1970
Model PA-70A Specs:
Used one Eimac 3CX1000
Legal Limit 80m – 10m (except 12m)
Vacuum Relay T/R
240vac
Dimensions: 9.5″h x 17″w x 17″d
Documentation
| 70A Schematic | Alpha_PA_70A_Schematic | |
| 70A Manual (same as 70V) | 70V_Manual | |
| 70V/A Parts List | 70A_Nov2017a | |
| 70A 160m Mod | Alpha_PA_70V_70A_77_160m_Mod | |
| Alpha Amplifier Keying Specs | Amp_Keying_Specs | |
| Alpha Amplifier Production Dates | Alpha_Amplifier_Production_Dates |
